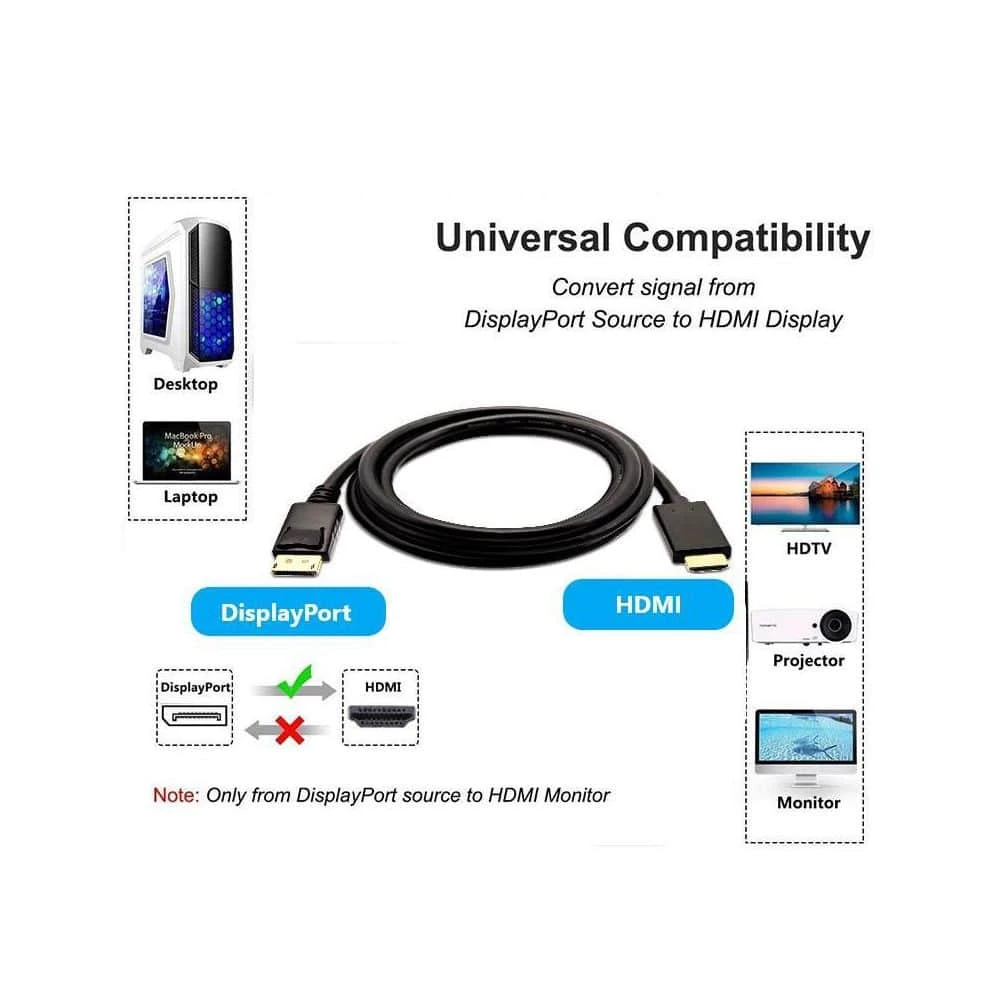

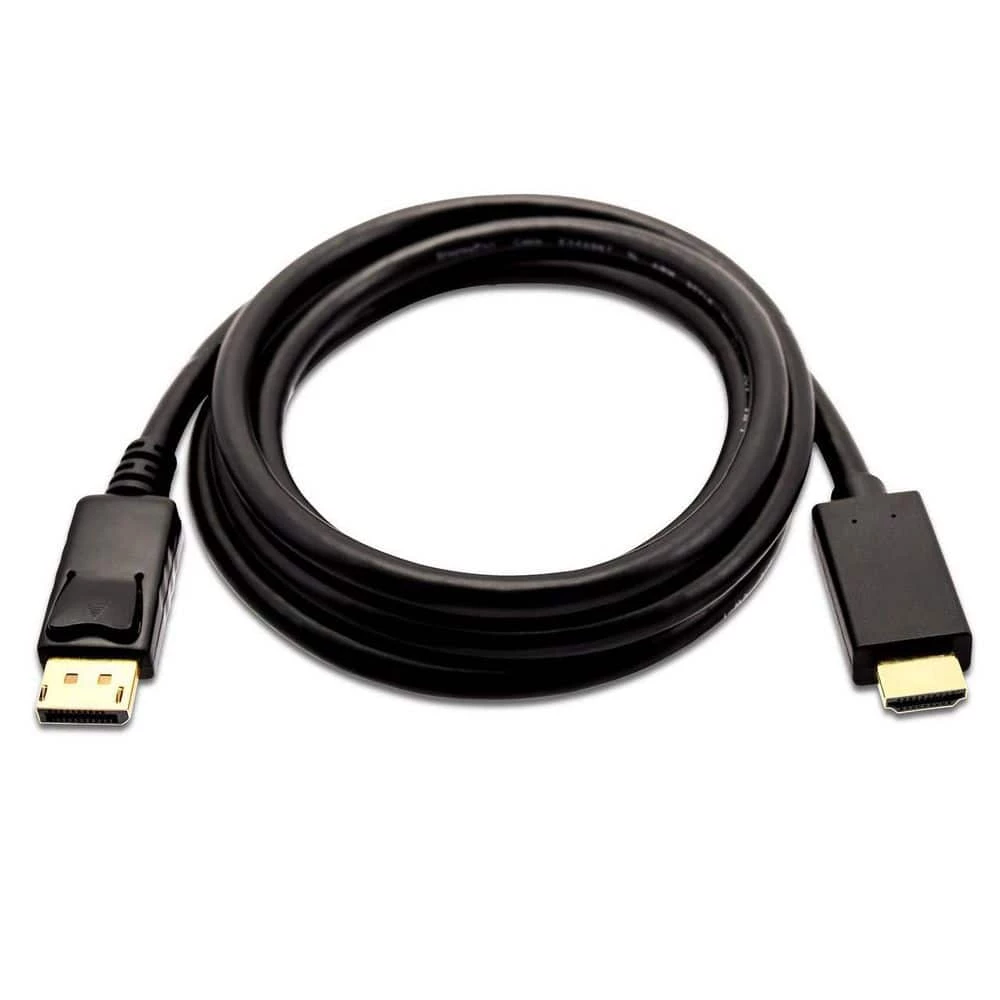

Compliant with DP1.2 specification. Connect a DisplayPort (DP, DP plus plus, DisplayPort plus plus ) equipped computer to a HD monitor or projector with HDMI connector. Support HBR bandwidth and resolutions up to 4K x 2K at 30 Hz. Gold-plated connector provides superior transmission, high reliability and durability. Deliver high-definition audio and video signals from your computer to a monitor for video streaming or gaming. DisplayPort connector with latches keeps cable securely plugged in. All relevant materials are complied with RoHS directive.
- Support DisplayPort 1.2 and 4 lanes
- Support DisplayPort 1.2a input and HDMI1.4b output
- Support HDMI highest video resolution 4K x 2K at 30 Hz
- Support multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2, 8/10/12 bpc
- HDMI 1.4a compliant with maximum data rate 3.0Gbps
- Support 10/12-bit deep color 1080p up to 2.25Gbps and 3D video formats (720p at 50/Hz 59.94 Hz/60 Hz, 1080i at 50 Hz/59.94 Hz/60 Hz, 1080p at 23.98 Hz/24 Hz, 1080P at 50 Hz/59.94 Hz/60 Hz) up to 2.97 Gbps
- Content protection of HDCP Rx and Tx keys to support HDCP repeater
- Support up to 8 channel LPCM, compressed audio (AC-3, DTS) and HBR audio format
- Support up to 192 khz audio frame rate and up to 24-bit audio sample size
- Integrated both HDCP Rx and Tx keys to support HDCP repeater
- Powered from DisplayPort source
- Cabl lengths available: 3 ft., 6 ft., 10 ft., 15 ft.
