500 ft. CAT 6A Solid and Shielded (F/UTP) CMR Riser Bulk White Ethernet Cable by Micro Connectors, Inc

Micro Connectors’ Bulk CAT 6A Shielded Cable comes on a convenient wooden spool for easy access, providing you with 500 ft. of high quality, solid full copper wire with overall aluminum foil shielding, ready for termination and routing. The Mylar foil shielding protects your data as it travels through the 4 twisted pairs of 23-Gauge solid copper wires by wrapping it in a thin metal sleeve thus keeping electrical interference from things like fluorescent lights and electrical lines found in a drop ceiling or inside walls at a minimum. Simply pull the length required for your installation straight from the spool and terminate at your leisure. These cables are a great aid in large scale network installations and other long-distance cable runs and like all of our bulk networking cables, these are constructed with only high-quality components that can be counted on for high performance.

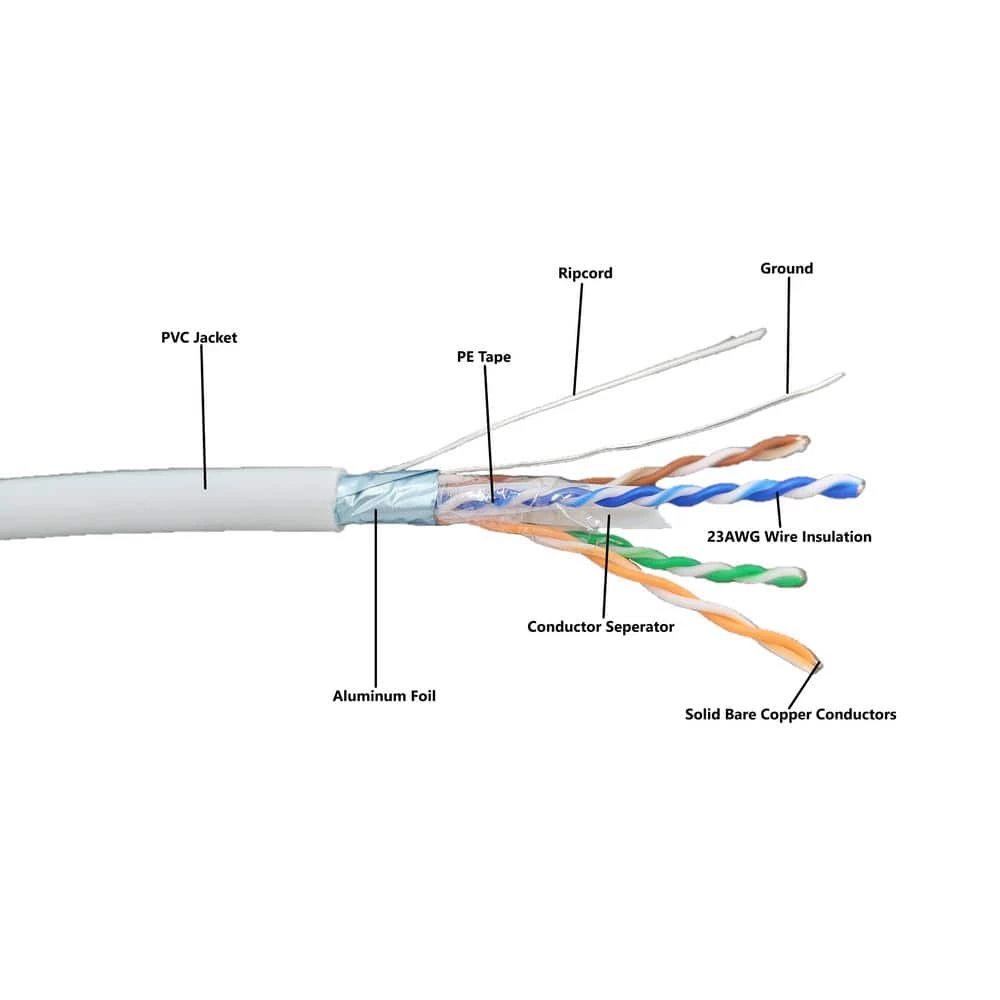

• Overall aluminum foil shielding (F/UTP) category 6 ethernet cable
• CMR jacket for in-wall riser-rated installation
• 23 AWG individual solid pure copper conductors
• Supports power over ethernet: PoE, PoE plus, and PoE plus
• Bandwidth speed up to 750 MHz
• Cross separator spline to ensure better signal performance and less crosstalk

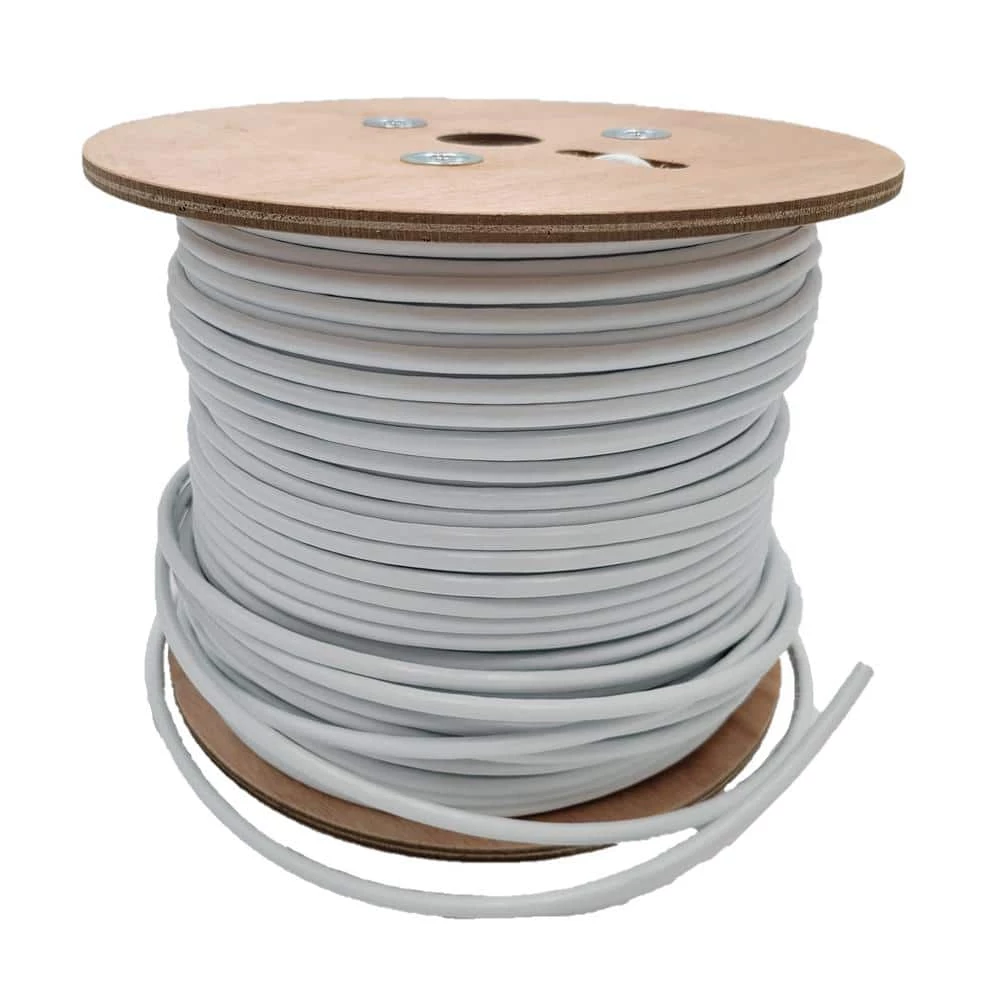

• Comes on a convenient wooden spool for easy access
• Running feet count printed on cable for easy measurement
• Meets ANSI/TIA-568-C specifications and UL, RoHS and TAA compliant
• Due to the overall thickness of the shielded bulk cable, some standard RJ45 connectors will not fit properly with this cable we recommend using our universal cat 7/6A/6 shielded modular connectors (part#C20-088L7S-20) these connectors will fit (23 AWG to 26 AWG, solid and stranded cables) or purchase the bundle kit to ensure a correct installation for optimal signal performance
